Description

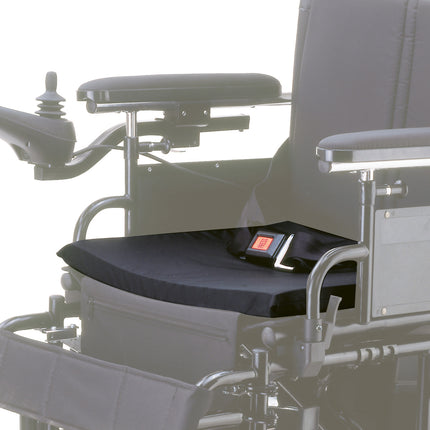

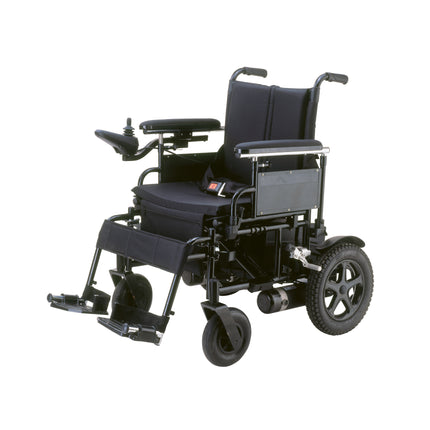

The Folding Cirrus Plus EC 22" Power Chair by Drive Medical is foldable and lightweight making it ideal for transporting. It comes in an attractive, lightweight, carbon steel frame with a silver vein finish which is easy to maintain. This model has a double cross brace frame to support an increased weight capacity. This Power Chair comes standard with a seat belt, seat cushion with pouch for easy storage, swing away footrests with calf straps and heel loops, wheel locks and an adjustable tension, padded, back upholstery, adding to users convenience, safety and comfort. The integrated, programmable PG controller and adjustable length joystick mount accommodates most user sizes. The Cirrus Plus EC Folding Power Chair has been tested and surpassed the ANSI RESNA testing requirements, providing our consumers with added security.
Features
- Foldable, lightweight frame for easy portability
- Steel double cross-brace frame
- Adjustable-tension back upholstery
- Armrests are padded, adjustable, and removable
- Adjustable-length controller mount
- Swing-away footrests with heel loops
- Positioning belt included

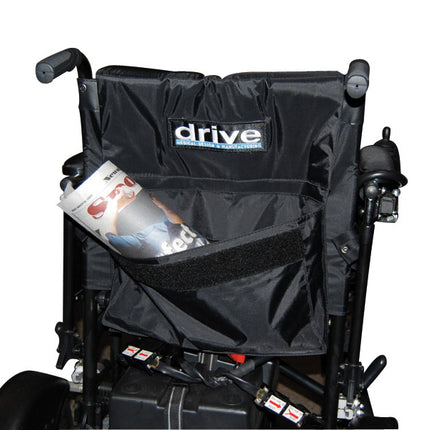

- Padded back upholstery with storage pouch and cushioned seat
- Programmable controller
- Flat-free, non-marking tires
- Easy freewheel operation
- Manual wheel locks
- General foam seat cushion included
- Anti-tip wheels
Specs
- Actual Product Weight: 156 lbs.
- Anti Tip Wheels: Yes
- Batteries: 2 - 12V 36AH
- Battery Weight: 56 lbs.
- Brakes: Electromechanical
- Casters: 8"
- Charger: Offboard, 4A
- Climbing Angle: 6 degrees
- Controller: PG Vsi 50A
- Drive Wheels: 12.5" x 2.25" Flat Free
- Ground Clearance: 4"
- Heaviest Piece: 100 lbs.
- Max Speed: 5 mph
- Maximum Range: 15 miles
- Motor: 2 - 24V x 320W x 4600rpm
- Number of Wheels: 4
- Overall Product Height: 36"
- Overall Product Length: 42.5"
- Overall Product Width: 29"
- Primary Product Color: Black
- Primary Product Material: Steel
- Product Weight Capacity: 400 lbs.
- Seat Depth: 16"
- Seat Width: 22"
- Seat to Floor Height: 18.5"
- Seat to Foot Deck: 14"
- Steering Type: Joystick
- Turning Radius: 35"
- Wheelchair Weight Without Battery: 100 lbs
